# Subitem Table

## Working with subitem tables

Use the instruction from this article to create a Microsoft Word (docx) template from scratch or use one of our [free templates](https://www.docexport.com/template-gallery/) as a starting point.

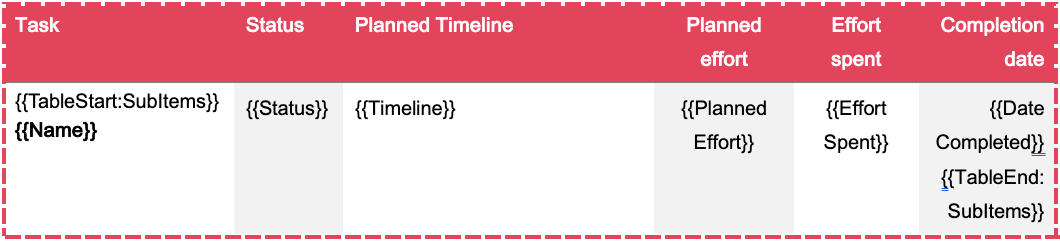

This is an example of how the structure looks like:

<figure><img src="https://content.gitbook.com/content/MnVzL8c1pE5zXO95iUKm/blobs/BK3XrRiRVwDh3QKODbRC/subitem_table.png" alt=""><figcaption></figcaption></figure>

## Create a table from scratch

{% embed url="<https://youtu.be/TdBTKctKgMg?si=-kdTugOXpxe7_pS3&t=1190>" %}

Insert a table in Microsoft Word. Usually, you only need two rows: one for the headings and one for the placeholders.

The second row (left column) needs to start with the placeholder **`{{TableStart:SubItems}}`** and ends (right column) with **`{{TableEnd:SubItems}}`**\
The second row will automatically replicate itself by the numbers of subitems in the exported PDF.<br>

In between, insert the placeholders you want to use in your final document. The logic of the placeholder is: **`{{ColumnTitle}}`**

If your subitem column is named 'Due Date', the placeholder would be **`{{Due Date}}`** and so on.

The name of the subitem is always **`{{Name}}`**

## Subitem Summary

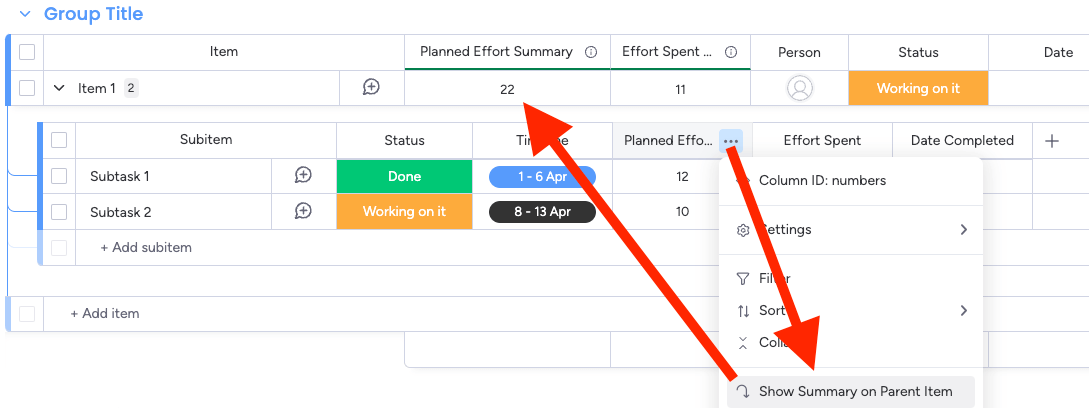

If you want to include the summary of subitems in your table (e.g. total number of hours), please use the native monday.com feature 'Show summary on parent item':

<figure><img src="https://content.gitbook.com/content/MnVzL8c1pE5zXO95iUKm/blobs/aCnCOzND6UhZR5rhWRYo/subitem_summary_1.png" alt=""><figcaption></figcaption></figure>

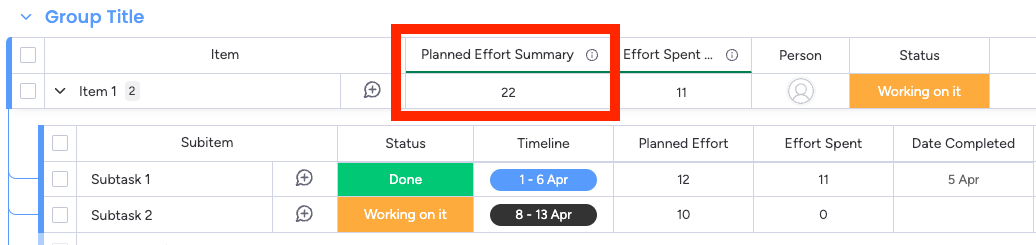

You can now use the column name from the parent item. In our example, we renamed it to 'Planned Effort Summary':

<figure><img src="https://content.gitbook.com/content/MnVzL8c1pE5zXO95iUKm/blobs/UKBMo7kzSRbAwNI1Nrbz/subitem_summary_2.png" alt=""><figcaption></figcaption></figure>

The placeholder is now in the item level and therefore, the structure is `{{Item.ColumnTitle}}`, in our case **`{{Item.Planned Effort Summary}}`** (please make sure to add the prefix Item. before the column title).

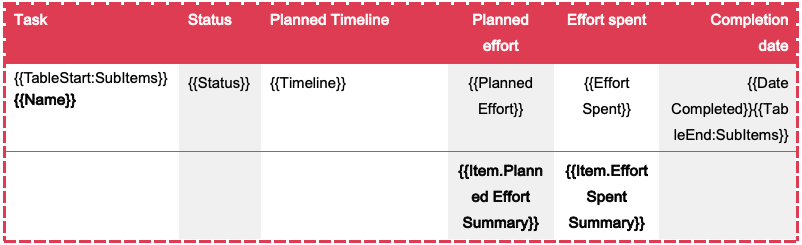

You can now insert this placeholder in a third row in your table:

<figure><img src="https://content.gitbook.com/content/MnVzL8c1pE5zXO95iUKm/blobs/SJerRjq6OkXaQVfBRsjZ/subitem_summary_3.png" alt=""><figcaption></figcaption></figure>

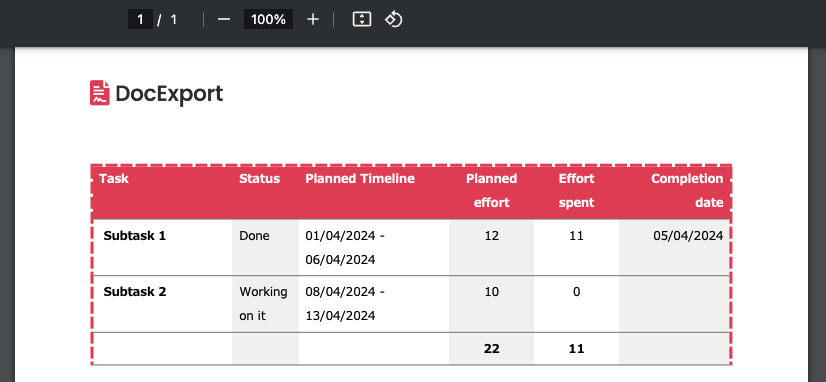

The table on your final PDF would look like this:

<figure><img src="https://content.gitbook.com/content/MnVzL8c1pE5zXO95iUKm/blobs/nMQlvVnoEKuaR8UipEar/subitem_summary_4.png" alt=""><figcaption></figcaption></figure>

## Combine Item and Subitem Table&#x20;

{% embed url="<https://youtu.be/TdBTKctKgMg?si=cCcHEuUUGEgmd940&t=1354>" %}

You can also combine the subitem table with item-level placeholders in one document and create more complex project reports.

<figure><img src="https://content.gitbook.com/content/MnVzL8c1pE5zXO95iUKm/blobs/rXP55DCfon8YWWdwpDve/DocExport%20Pdf%20Generator_With%20SubItems-3.png" alt=""><figcaption><p>Project Report with Items and SubItems</p></figcaption></figure>

**Download the template** from this example from our free [Template Gallery](https://www.docexport.com/template-gallery/).

To use both tables within a document, it is important to nest the Subitem table loop **inside** the Item table loop.

This means that the placeholders `{{TableStart:Items}}` and `{{TableEnd:Items}}` should **surround** the entire Subitem table, which is generated between the placeholders `{{TableStart:SubItems}}` and `{{TableEnd:SubItems}}`.

<figure><img src="https://content.gitbook.com/content/MnVzL8c1pE5zXO95iUKm/blobs/dRIHjhlfEO4HmU5FyHeG/PDFGenerator_SubItemAndItemTable.png" alt=""><figcaption></figcaption></figure>

Follow these steps to properly insert both the Item and Subitem tables into your document:

### 1. Start the Item Loop

Insert the `{{TableStart:Items}}` placeholder where you want the list of Items to begin and insert your item table.

### 2. Nest the Subitem Loop Inside

Immediately after the item table, insert the `{{TableStart:SubItems}}` placeholder to start the Subitem loop.

Add your Subitem fields here.

Then close the Subitem loop with `{{TableEnd:SubItems}}`.

**Important:** The entire Subitem Table must be inside the Item loop!

### 3. End the Item Loop

Place the `{{TableEnd:Items}}` placeholder to finish the Item loop.

### 4. Add Grouping (Optional)

If you want the output to be grouped the same way as it appears in your board:

* Place the grouping placeholder `{{TableStart:Groups}` **before** `{{TableStart:Items}}`
* Close the grouping  `{{TableEnd:Groups}}` **after** `{{TableEnd:Items}}`
